Project Three:  This panel was built to control eight zones in a mold on an injection machine.

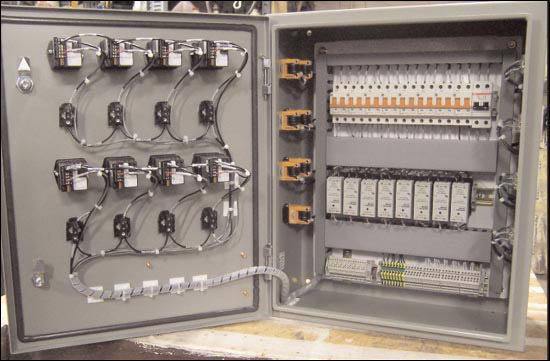

a Control Project 003 top
  • Eight Watlow Temperature Controls each switching aSolid State Relay to control individual heaters.
  • Each zone, protected by circuit breakers, gave visual current light indication of operation and was terminated into twist-lock receptacles.
  • Power to each zone selectable with Sprecher + Schuh 22mm Switch.

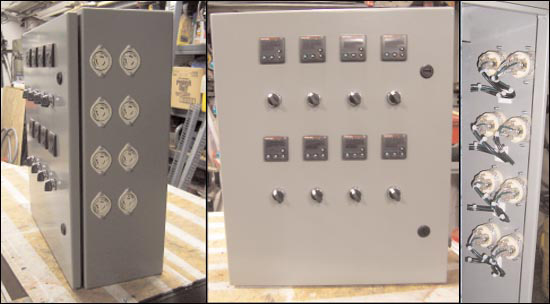

a Control Project 003 bottom
