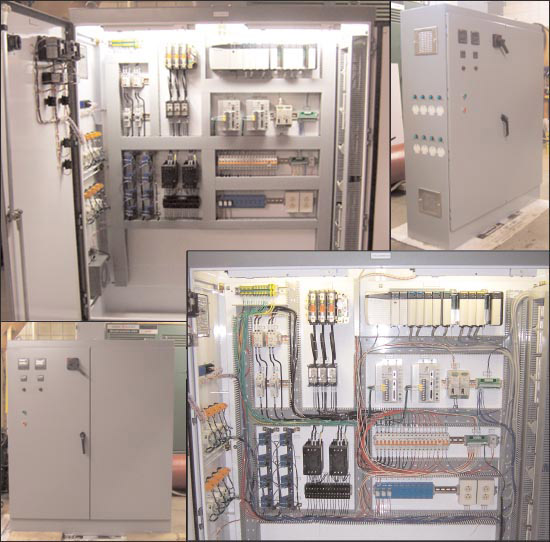

Project One:  A panel designed to control a carbon fiber laminating machine.

  • Machine control via Programmable Logic Controller and remote terminal blocks.
  • Servo motor control using two servo drives fiber optically coupled to PLC.
  • Two zones of ramp/soak heat control using Watlow F4 Controls and SCR's.
  • Each zone of temperature protected with Watlow Limit Controls
  • Each zone of temperature control contained four cartridge heaters, with current switch feedback and visual current light indication for operation, terminated into twist-lock receptacles.
