Project Nine:  This panel was built to control a 125HP DC Motor on a test stand.

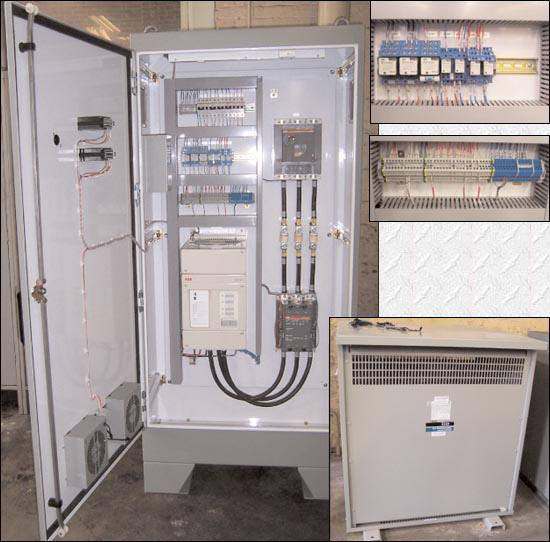

a Control Project 009 TOP
  • ABB molded case circuit breaker with disconnect operator.
  • SCR fusing for drive protection.
  • ABB contactor for field loss relay.
  • ABB DCS502 125HP DC Drive.
  • Finder ice cube relays for remote control panel interface.
  • PC&S meters for Voltage and Current feedback from the drive.
  • Cooling package to ensure proper cabinet temperature during operation.
  • Step-down drive isolation transformer for 240 3PH from 480 3PH.

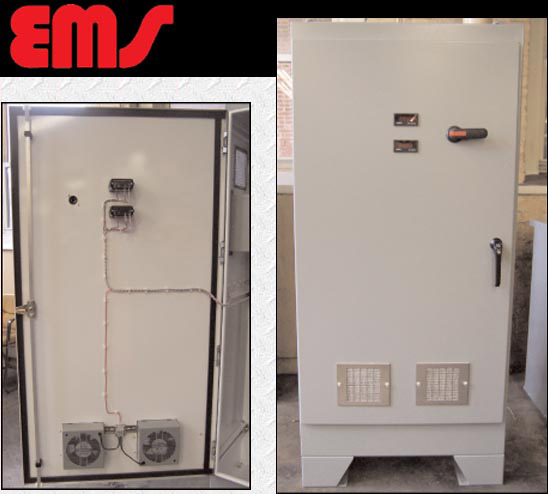

a Control Project 009 BOTTOM
